T1 ladder tread plate galvanized steel grid plate staircase commonly used treads
T1 steel structure stair tread board can use tooth-shaped flat steel to enhance anti-skid ability, but the tooth-shaped price is slightly higher than that of square meter tread board, which is not recommended if it is not particularly humid and greasy.
Details of T1 Step Board:
Its structural form and structural characteristics are: the two end side plates are wrapped with the same flat steel as the bearing flat steel, there is no front guard plate, and the connection with the ladder beam is welded, and the side plates and anti-skid strips are not welded. The structure is simple, Temporary use in relatively low places. This kind of steel grating is welded to the steel beam during installation, which is simple, economical and practical. T1 stepping board is often used by smaller projects and has a wide range of practical performance.
- Warranty:
-
1 Year
- After-sale Service:
-
Online technical support
- Alloy Or Not:
-
Non-Alloy
- Secondary Or Not:
-
Non-secondary
- Project Solution Capability:
-
graphic design
- Application:
-
Hotel
- Design Style:
-
Industrial
- Place of Origin:
-
Hebei, China
- Brand Name:
-
XBY
- Model Number:
-
Q235
- Product name:
-
Steel grating walkway
- Bearing bar:
-
25*3, 25*4, 25*5, 30*3, 30*4, 30*5, 32*5, 40*5, etc
- Bearing bar pitch:
-
30mm, 40mm, 50mm, etc
- Cross bar:
-
5mm, 6mm, 8mm, etc
- Cross bar pitch:
-
50mm, 100mm, etc
- Surface treatment:
-
Hot dip galvanized, Untreated, Powder coated, Painted, etc
- Color:
-
Siver, Black , etc
- Size:
-
1*1m, 5.8*1m, 6m*1m, etc
- Certificate:
-
ISO 9001
![]("/uploads/)

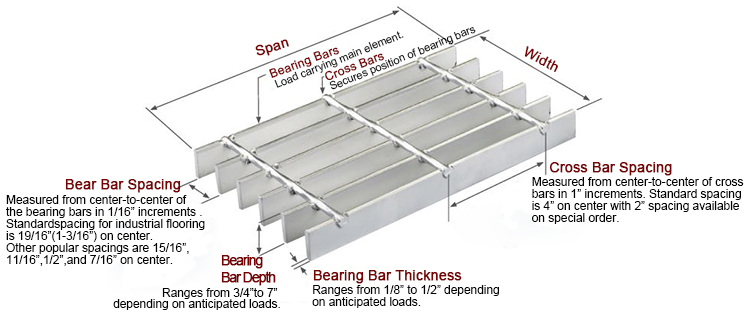

Description of steel grating walkway
we have more than 20 years experiene in producing the steel grating walkway. We can provide the steel grating walkway for you.
Material: Low carbon steel , Stainless steel, etc
Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc
Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc
Bearing Bar Pitch: 30mm, 40mm, 50mm, etc
Cross Bar Diameter: 5mm, 6mm, 8mm, etc.
Surface treatment: Hot dip galvanized, Untreatd, Stainless steel , etc
Specification of steel grating walkway
| No. | Item | Description |
| 1 | Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc |
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc 2Bearing bar pitch12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. 3Cross bar5*5,6*6,8*8mm(twisted bar or round bar)4Cross Bar Pitch38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc 5Material GradeASTM A36,A1011,A569,Q235,S275JR,SS304,SS400,
Mild steel & Low carbon steel,etc.6Surface TreatmentBlack, self colour, hot dip galvanized, painted, spray coating 7Flat bar typePlain,Serrated(tooth-like),I bar (I section)8StandardChina:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88),
UK:BS4592-1987,Australia:AS1657-1985,
Germany:DIN24537-1-2006,
Japan:JJS.
Different specification has differenct steel grating prices.

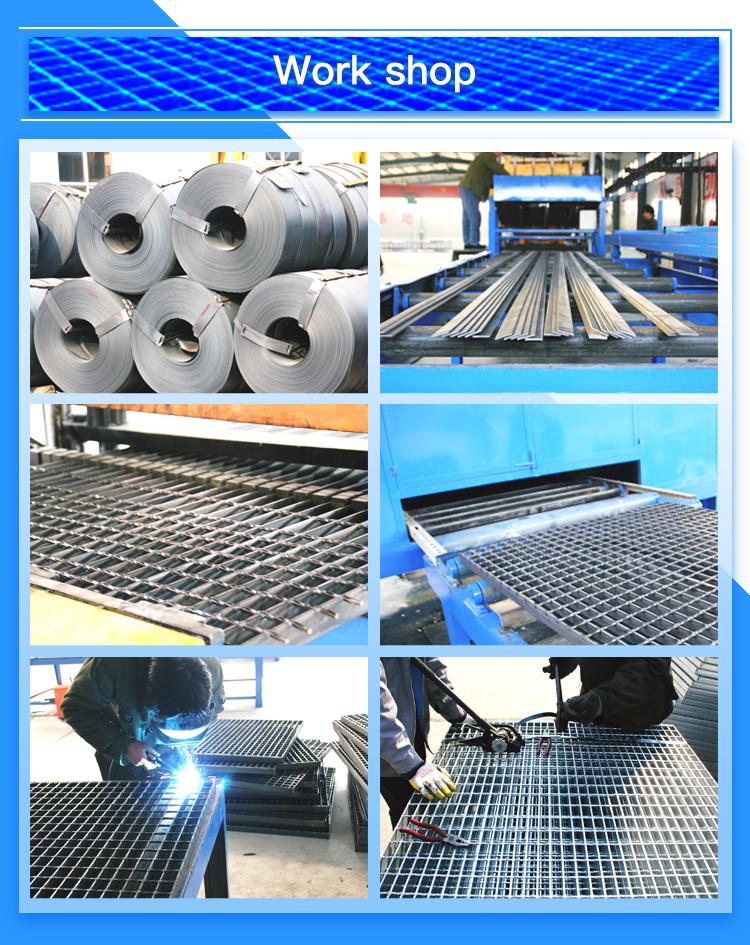

Professional Work shop of steel grating walkway
Steel grating walkway is made by welding with Flat steel and Cross bars with certain distance. As we have more than 20 years experience, so we can guarantee the catwalk steel grating with good welding technique and heavy galvanized coating.We can supply our client high quality steel grating walkway with best steel grating prices in the market.
The cross bar adopts spiral design, anti-slip and beautiful
Thickened material, load-bearing and compressive, can pass the car after installation
Application of steel grating walkway
Steel grating walkway is mainly used in the chemical industry, food processing, catwalk and trench cover and other industrial as listed: Power plant, Chemical plant, Oil refinery, Steel plant, Machinery plant, Paper-making factory, Waste water treatment, Pharmacy industrial, Food processing,etc.
Certification of steel grating walkway
Our services
1. Any enquiry will be replied within 12 hours.
2.Sample production and delivery service can be provided, as for any information about the sample or any specific requirements for the sample, please contact us via telephone , mail or online trade manager.
3.OEM/ODM is available. Printing logo on customized products.Customized design and material. Customized packing for your products.
4.Before-sale and after-sale service. All products have been strictly quality test in our factory before packing.
dear friend,
Thank you for visiting our products.
Our products are better in quality and most competitive in price. If you want to know more about fence and fence, steel grating, handrail, metal ball, drainage grating, stair pedal and so on, please feel free to contact me.
Looking forward to our cooperation!
Best regards
johnarivn
Q: Are you a manufacture?
A: Yes, we have specialized in this field for more than 15 years.
Q:How do you look at your customers?
A:They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.
Q:Do you sell products only?
A:We not only sell products, we also provide services, we have a comprehensive after-sales service system.
Q: Do you provide sample?
A: The samples are provided free, but the customer need to pay the postage.
After the customer place order, we will deduct the postage from the payment.
Q: How long would it take to produce a sample?
A: 3-5 days after receiving the postage or get the postage collect account.
Q: What information should i provide,if i want a lowest quotation?
A: The specification of products, such as size, color, package and quantity.
Q: What is the MOQ? How many sets can fit in one Container?
A: Minimum order quantity can be discussed. We calculate the number of products that a container can hold based on the data
Q: Do u know the deliver charge to my port or my country?
A: Yes, I have ship agent, will offer u the best vessel and charge.
